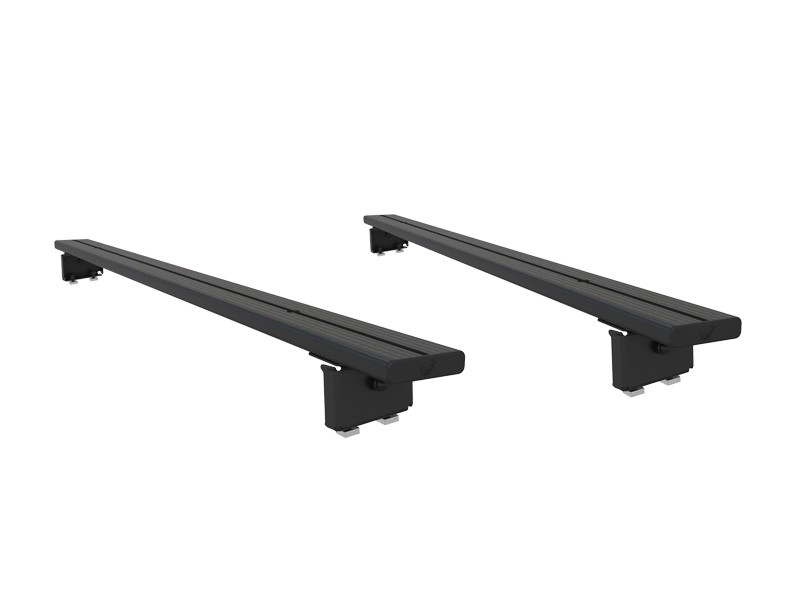

Isuzu Frontier Load Bar Kit / Track + Feet

A set of Load Bars with Track Mounted Feet used to transport gear on the roof of your vehicle when theres no need for a full Front Runner Roof Rack. This low profile, smaller footprint solution includes 4 40mm Feet, 2 1165mm Load Bars, 2 Isuzu Frontier 1620mm Tracks, 1 10mm Roof Load Bar Wind Deflector and fitting instructions - all the components necessary to mount the Front Runner Load Bars to the vehicle.

KRIF003 - Isuzu Frontier Load Bar Kit / Track & Feet - by Front Runner
Consisting of:
2 x FASS012 - Foot Set / 40mm-50mm - by Front Runner 1 x LBSK013 - Load Bar Pair 1165mm(W) - by Front Runner 1 x TRIF001 - Isuzu Frontier Tracks / 1620mm(L) - by Front Runner 1 x WDLB001 - Load Bar Wind Deflector / 10mm - by Front Runner

Material used:
Black epoxy powder-coated T6 aluminium
3CR12 Stainless Steel
Approximate Installed Weight 8kg (18lbs)
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8) to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.
If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8) to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.
If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8) to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width110mm (4)Length1630mm (64)Height 235mm (9)
Shipping Weight:
Weight9.4kg (20.8lbs)
