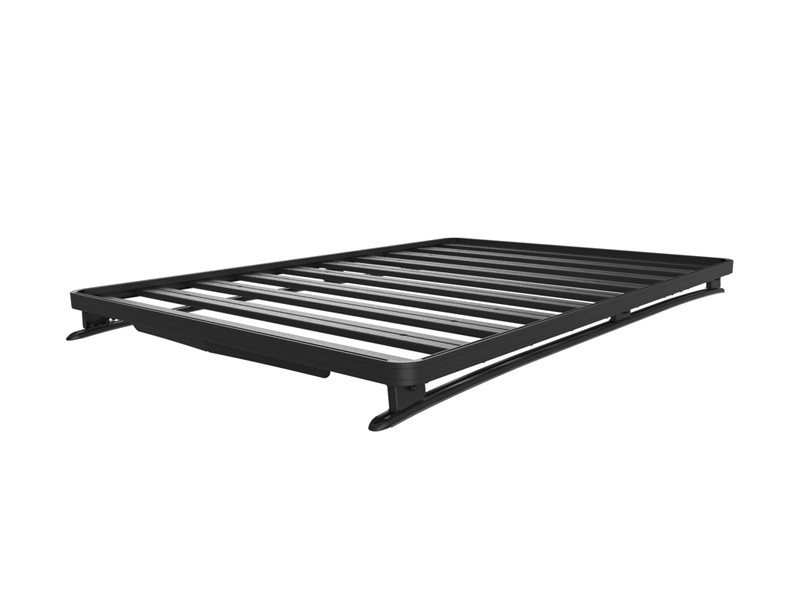

Hyundai H1 SLII Roof Rack Kit

This 2166mm/85.3 long full-size Slimline II cargo carrying roof rack kit for the Hyundai H1 contains Slimline II Tray, Wind Deflector, 2 Tracks and 6 Feet.Drilling is required for installation.

KRHH001T - Hyundai H1 Slimline II Roof Rack Kit - by Front Runner
Consisting of:
1 x FASS012 - Foot Set / 40mm-50mm - by Front Runner 2 x FASS013 - Foot Set / 60mm-70mm - by Front Runner 1 x RRAC021 - Between Slat Foot Adapter - by Front Runner 1 x RRSTG11 - Slimline II Tray - 1345mm(W) X 2166mm(L) - by Front Runner 1 x TRHH001 - Hyundai H1 Tracks / 2100mm(L) - by Front Runner

Material used:
Black epoxy powder-coated T6 aluminium
3CR12 Stainless Steel
Approximate Installed Weight 33kg (73lbs)

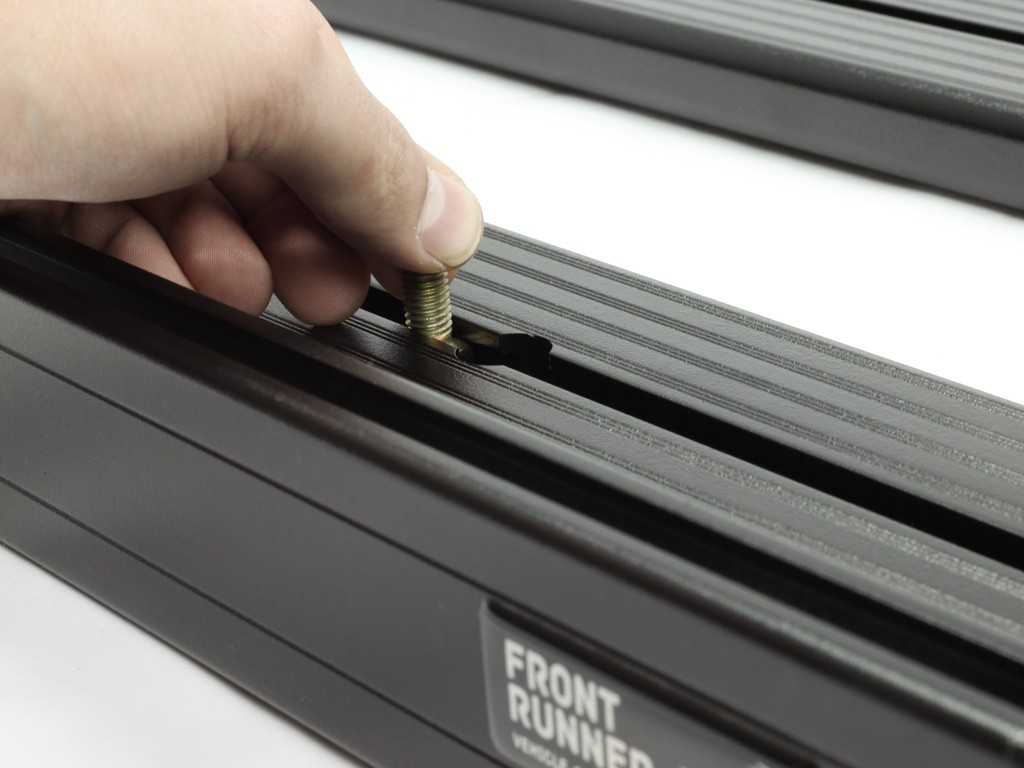

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2) to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width450mm (18)Length1615mm (64)Height 140mm (6)
Shipping Weight:
Weight38.5kg (84.7lbs)
